Switch Card-IO
Brand：GENERALTEST| Part number | Name | Function | Size | Remarks | Photograph |

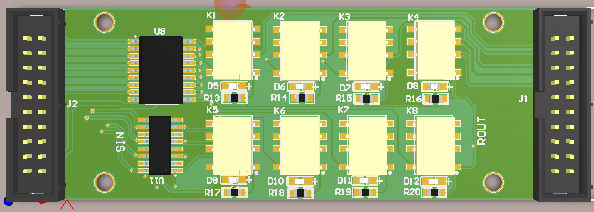

| 0305A0001736 | GT-2305A | 8-channel signal relay + 4-channel sensor, controlled by DIO port |
84*33 (mm*mm) |
|
|

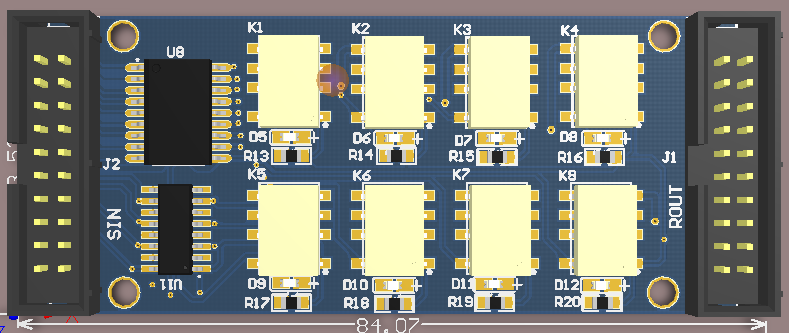

| 0305A0001753 | GT-2306A | 8-channel signal relay + 4-channel sensor input, normally closed terminal led out | 84mm*33mm |
|
|

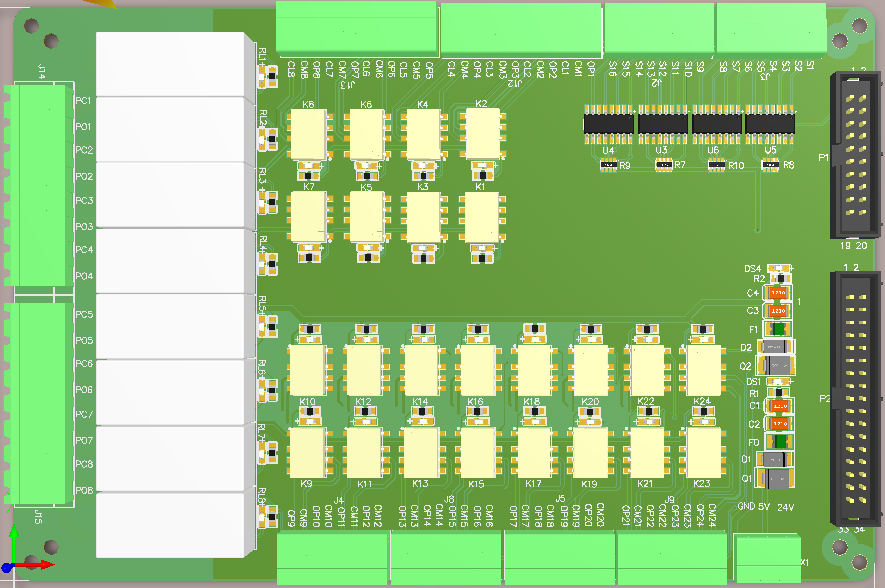

| 0305A0001738 | GT-2312A | 24-channel signal relay + 8-channel power relay + 16-channel sensor, controlled by DIO |
175*116 (mm*mm) |
Maximum current up to 16A |
|

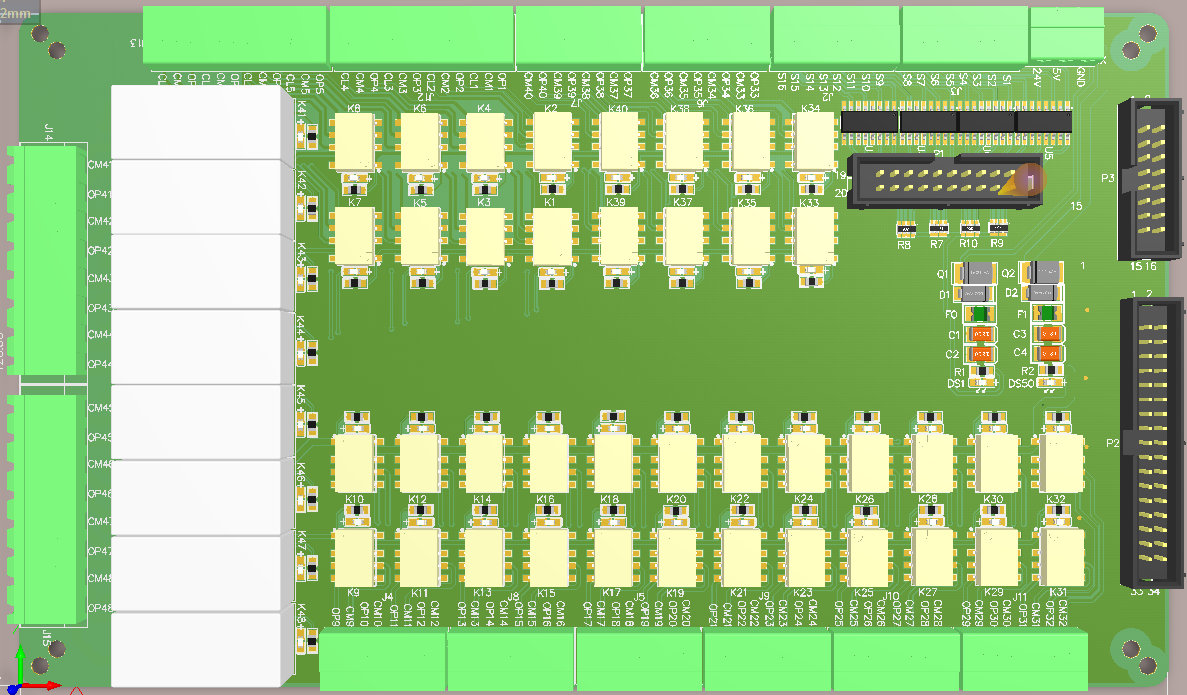

| 0305A0001739 | GT-2308A | 40-channel signal relay + 8-channel power relay + 16-channel sensor, controlled by DIO |
205*120 (mm*mm) |
Maximum current up to 16A |
|

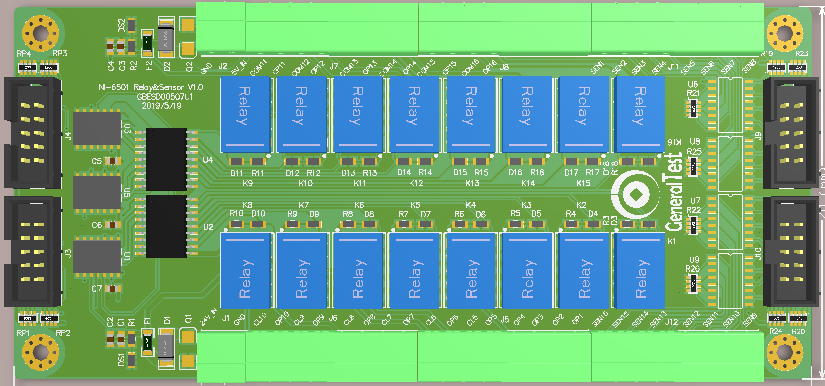

| 0305A0001749 | GT-2303A | 16-channel signal relay + 16-channel sensor, | 150mm*70mm | Plug-in relay can be replaced |
|

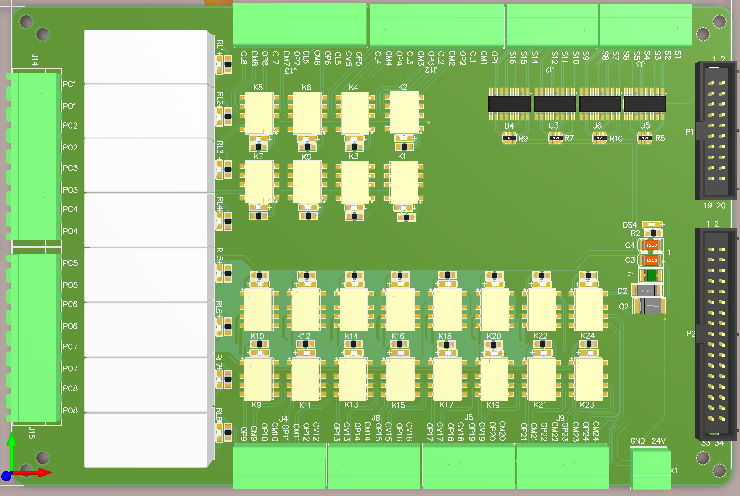

| 0305A0001750 | GT-2310A | 8-channel power relay + 24-channel signal relay + 16-channel sensor | 175mm*116mm |
|
|
| GTESD00086D01 | GT-220060A | 16-channel reed relay switching board | 250mm*72mm | Switching times up to 1 million times |
|

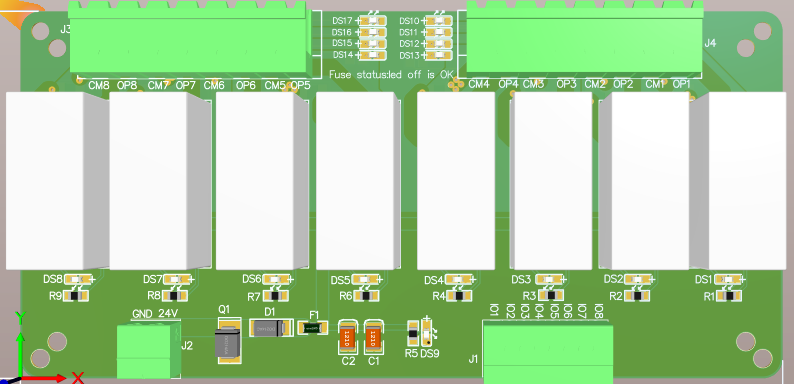

| GTESD00114D01 | GT-220088A | 8-channel power relay, controlled by DIO |
135*65 (mm*mm) |
Maximum current up to 16A |
|
| GTESD00115D01 | GT-220089A | 8-channel power relay, controlled by DIO |
135*65 (mm*mm) |
Maximum current up to 16A |
|
