Standard Box
Brand：GENERALTEST| Part number | Name | Function | Size | Remarks | Photograph |

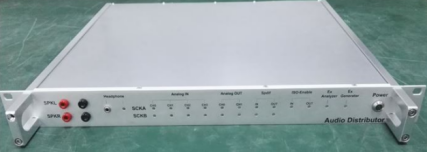

| GSY000006A1 | Audio Box |
Audio signal input and output switching, input acquisition and analysis, analog output; 1. 8*4 groups of audio input measurement channels; 2. 2*4 groups of audio output channels; 3. Two digital audio channel inputs; 4. Two digital audio channel outputs; 5. Controlled by NI USB6501; 6. NI 6003 DAQ audio sampling analysis; |
482mm*285mm*43.6mm | Including mechanism and board |
|

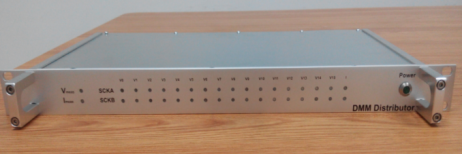

| GSY000004A1 | DMM switch Box |
Multi-channel measurement unit 1. 32 groups of voltage measurement channels; each channel rated 1A/35V DC, 0.5A/125V AC 2. Two current measurement channels; each group 10A/300V DC, 10A/440V AC 3. Controlled by NI USB6501 |
482mm*225mm*43.6mm | Including mechanism and board, excluding test instruments; |
|

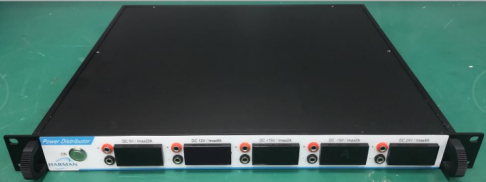

| GSY000005A1 | Power Box |
Universal power box, outputting various DC power supplies commonly used in test systems 1. Providing 8 power output channels; 3. +5V output with maximum current 20A; 4. +12V output with maximum current 8A; 5. +15V output with maximum current 2A; 6. -15V output with maximum current 2A; 7. +24V output with maximum current 4A; |
350mm*482mm*45mm | Including mechanism and board |
|

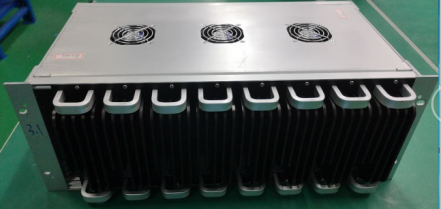

| GSY000012A1 | Universal Adjustable Load Box |
Universal adjustable load box 1. 8 independent load outputs, each can output 1-9R, and phase shift output after adding inductance 2. RS232 serial port control 3. Resistance output connector - XLR female |
300mm*200mm*135mm | Including mechanism and board |
|
| GTESD00062S01 | GT-320065A |
Universal adjustable load box 1. 16 independent load outputs, each can output 1-9R, power 100W 2. RS232 serial port control |
Including mechanism and board |
|
