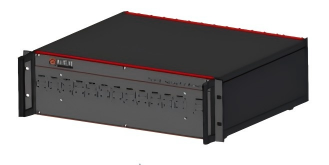

GT680 Chassis
-
FunctionalityMulti-function test switching acquisition control unit
-
Sizes633mm*133mm*350mm
-
Note
1.1 control slots+12 functional slots;
2. It can be controlled using the built-in Mini PC or extended with IPC control externally; (Save space in 4U IPC cabinet);
3. Multiple functional boards with flexible combination methods;
4. Platform based architecture with strong scalability
| Material Number | Name | Functionality | Sizes | Note | Photograph |

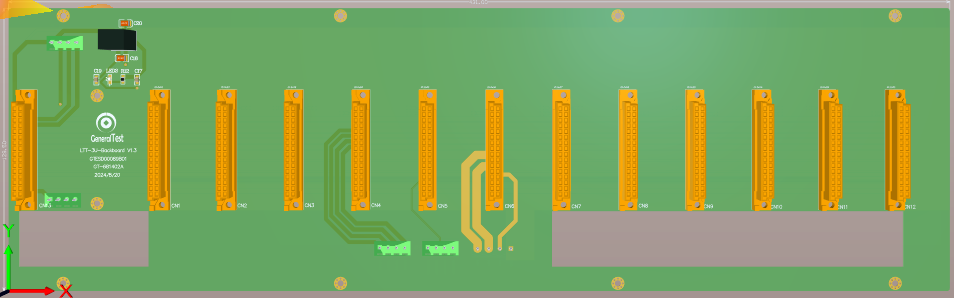

| GTESD00089B01 | GT-681402A | Chassis Backplane | 192mm*103mm | Responsible for sub-card communication, power supply and public resource sharing |
|

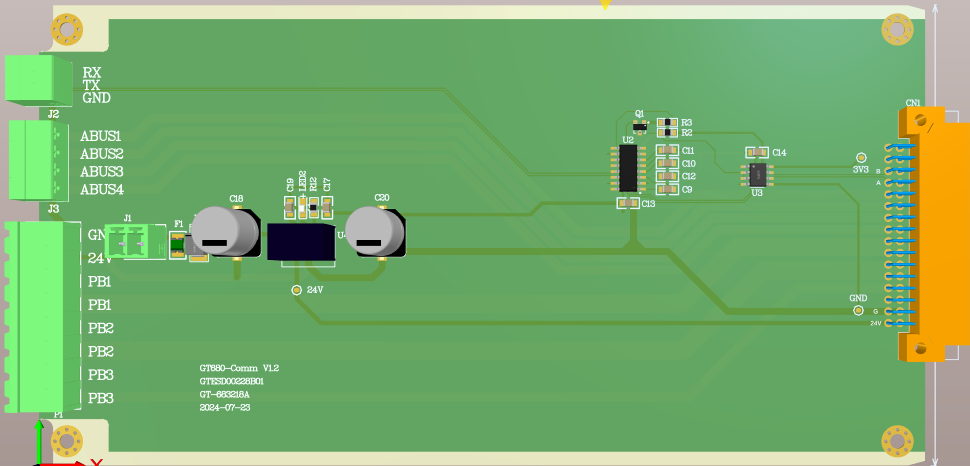

| GTESD00228B01 | GT-683230A | PC Communication Board | 192mm*103mm | Connect to PC, using RS232 communication |
|

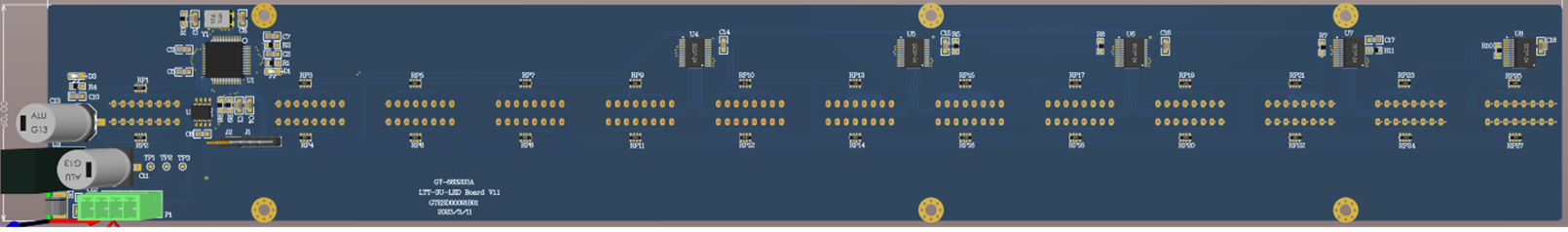

| GTESD00091B01 | GT-683203A | Panel Light Control Board | 192mm*103mm | Used for panel light display |
|

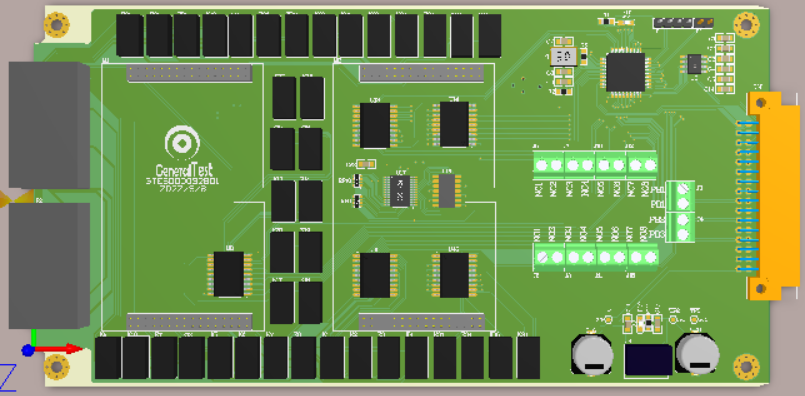

| GTESD00092B01 | GT-689001A | Small Signal Load Board | 192mm*103mm | 16-channel small signal load board, maximum channel current 2A; can be used as a single board by adding an adapter card; |
|

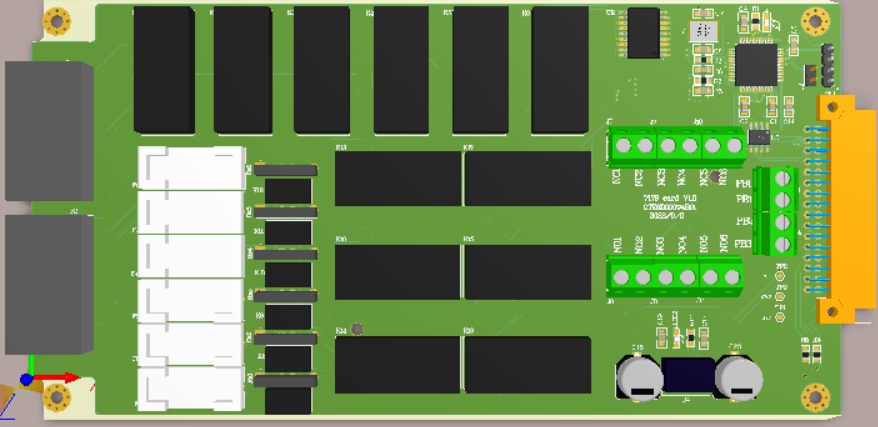

| GTESD00094B01 | GT-686202A | High Current Load Board | 192mm*103mm | 6-channel high current load board, maximum channel current 8A; can be used as a single board by adding an adapter card; |
|

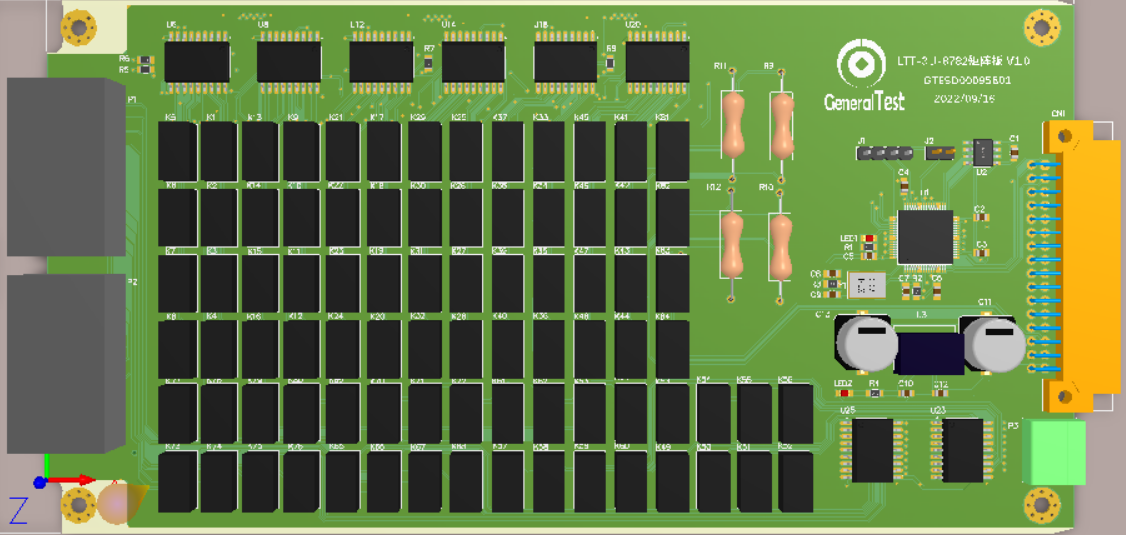

| GTESD00095B01 | GT-687201A | Matrix Board | 192mm*103mm | 4*16 small signal matrix board; can be used as a single board by adding an adapter card; |
|

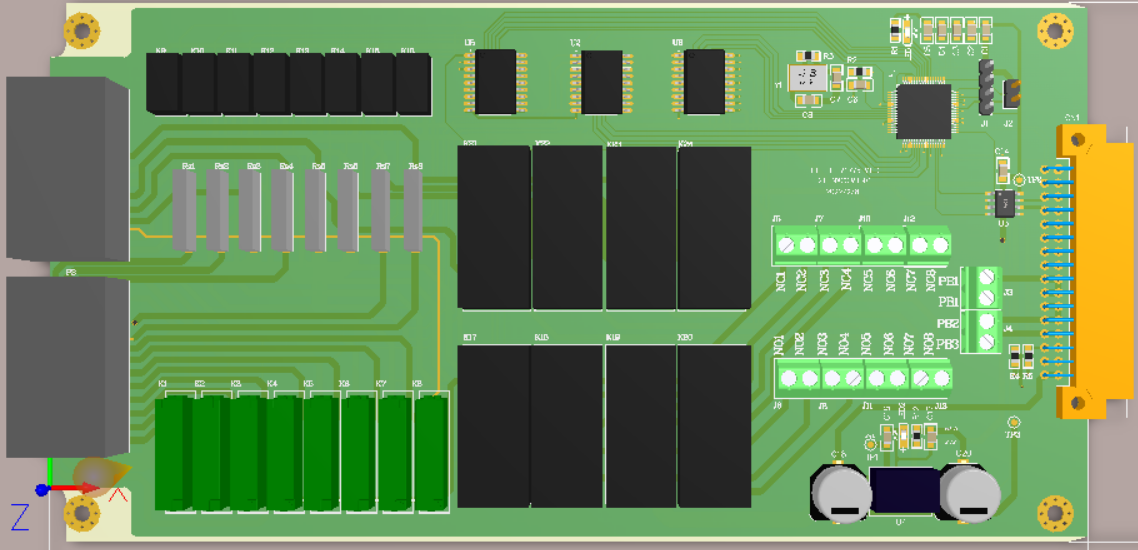

| GTESD00093B01 | GT-686101A | Medium Current Load Board | 192mm*103mm | 8-channel medium current load board, maximum channel current 4A; can be used as a single board by adding an adapter card; |
|

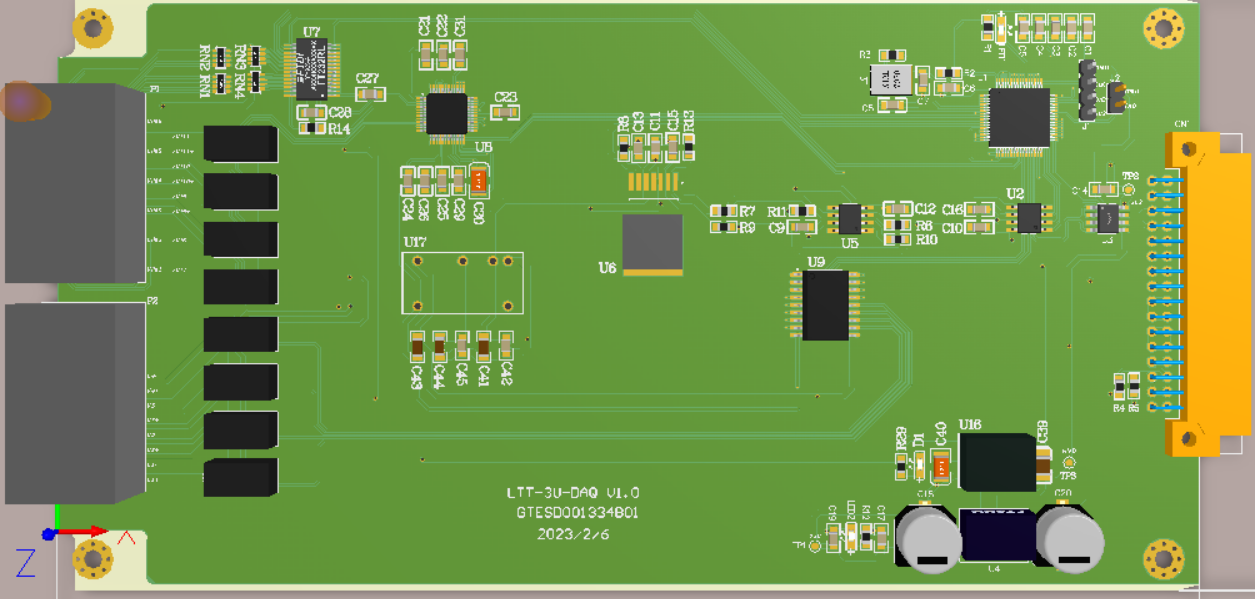

| GTESD00096B01 | GT-685201A | DAQ Card (under development) | 192mm*103mm | 12 channels of AI acquisition, maximum range ±10V, 16-bit precision, sampling rate 500Kbps; 4 channels of AO output, 12-bit precision, voltage range 0-12V; can be used as a single board by adding an adapter card; |
|

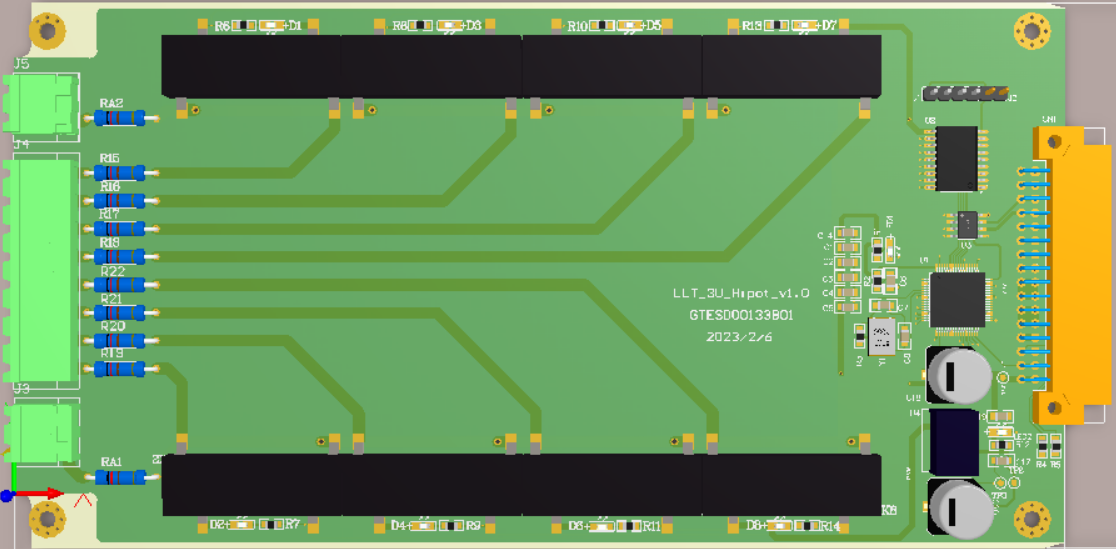

| GTESD00133B01 | GT-682205A | High Voltage Switching Board | 192mm*103mm | 8-channel high voltage relay board, maximum switching voltage 1000V; can be used as a single board by adding an adapter card; |
|

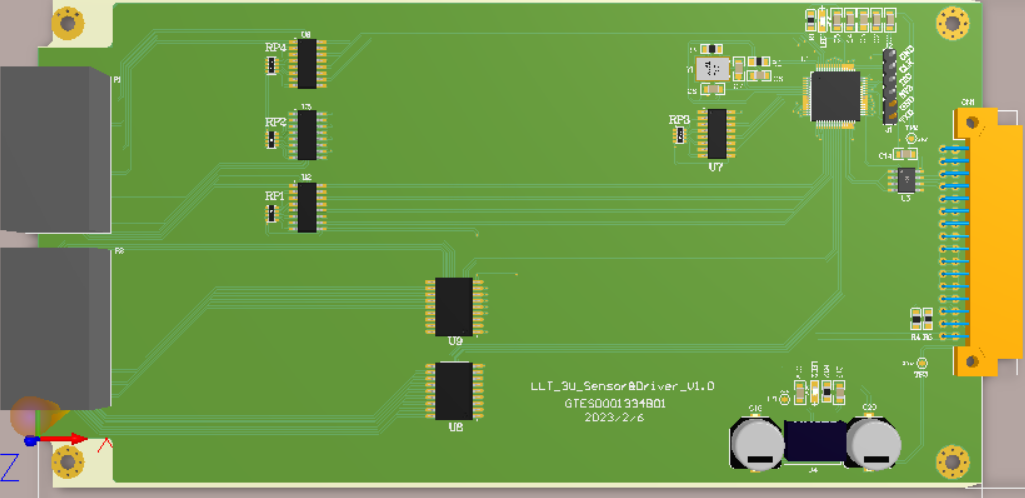

| GTESD00134B01 | GT-682206A | Fixture Control Board | 192mm*103mm | 12-channel digital input, 16-channel open collector output, commonly used for automatic control of fixture cylinders; can be used as a single board by adding an adapter card; |
|

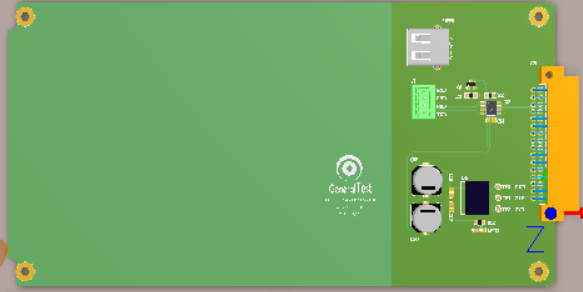

| GTESD00112B01 | GT-681105A | Mini PC Adapter Board | 192mm*103mm |
|
|

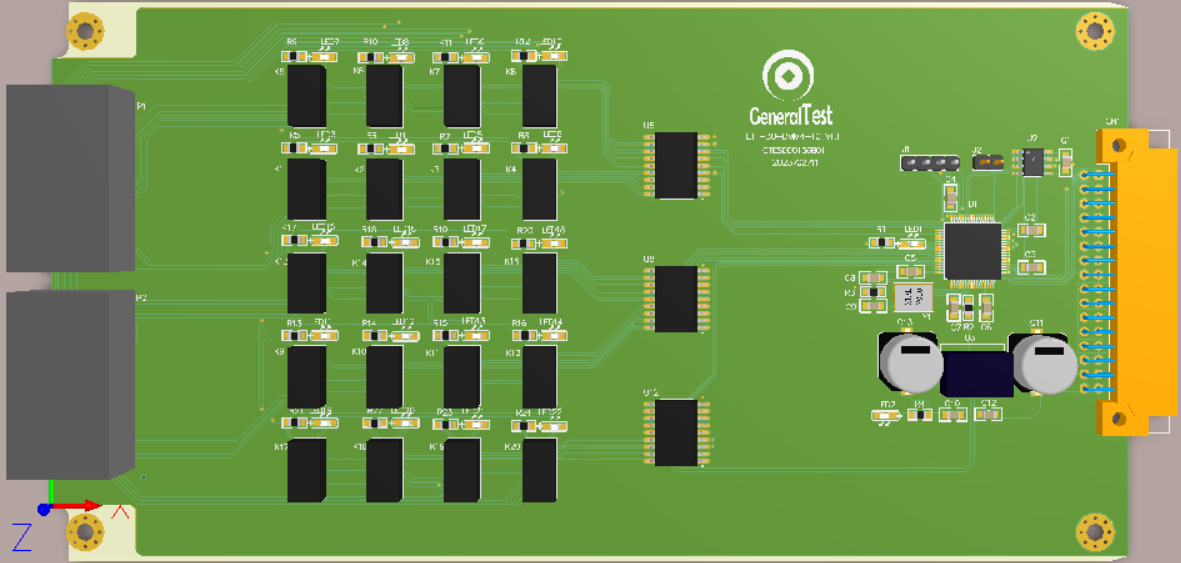

| GTESD00136B01 | GT-687103A | 4-wire DMM Switching Board | 192mm*103mm | 10-channel 4-wire DMM measurement switching board; can be used as a single board by adding an adapter card; |
|

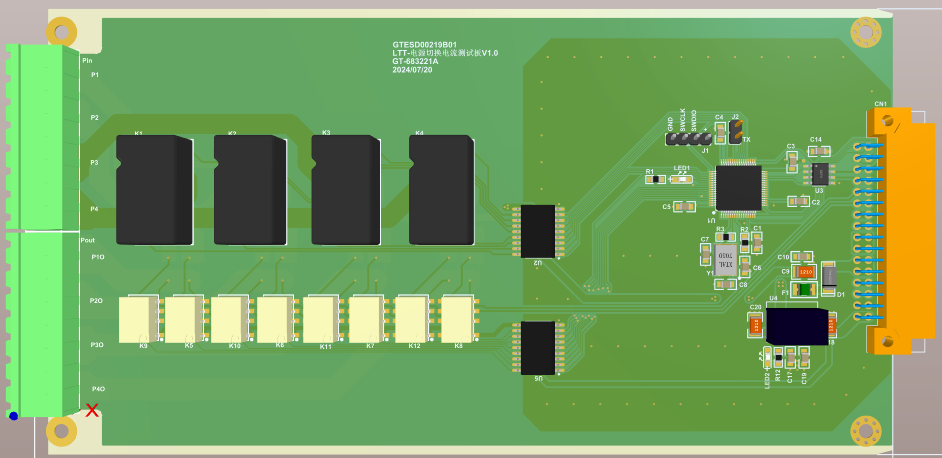

| GTESD00219B01 | GT-683221A | 4-channel Power Supply Channel Switching + Current Sampling | 192mm*104mm | Maximum current 16A, with sensor switching, with current sampling resistor, measured using external DMM (ABUSx input); can be used as a single board by adding an adapter card; |
|
| GTESD00221B01 | GT-683223A | 40-channel 2-wire DMM Switching | 192mm*105mm | Measured using external DMM (ABUSx input); can be used as a single board by adding an adapter card; |
