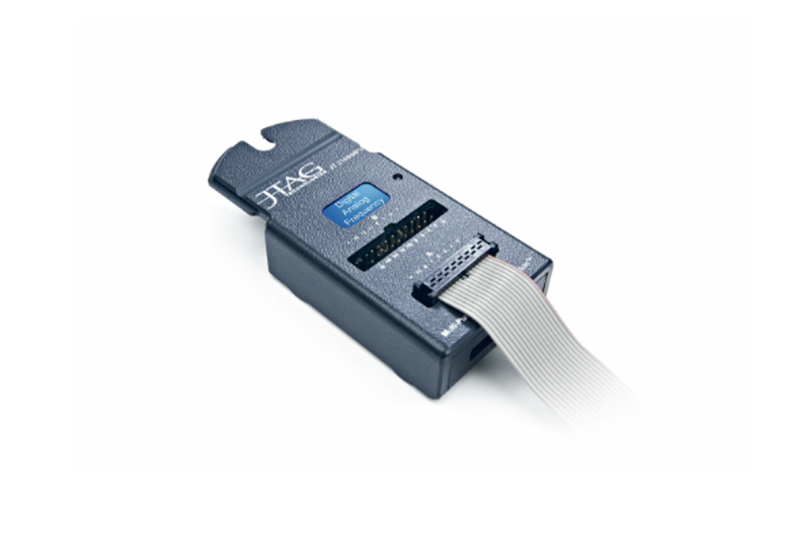

The JT 2149/DAF is a compact, mixed-signal (Digital/Analog/Frequency) measurement module for use in JTAG Technologies’ widely-used JT 2147 (QuadPod) signal conditioning interface. The DAF module has been designed to replace a regular TAP Pod and provides 28 measurement channels plus a clock generator. When connected to a circuit board via edge connector or test fixture/jig test pins, the module enhances standard digital boundary-scan tests by enabling a series of analog and frequency measurements to be made.
