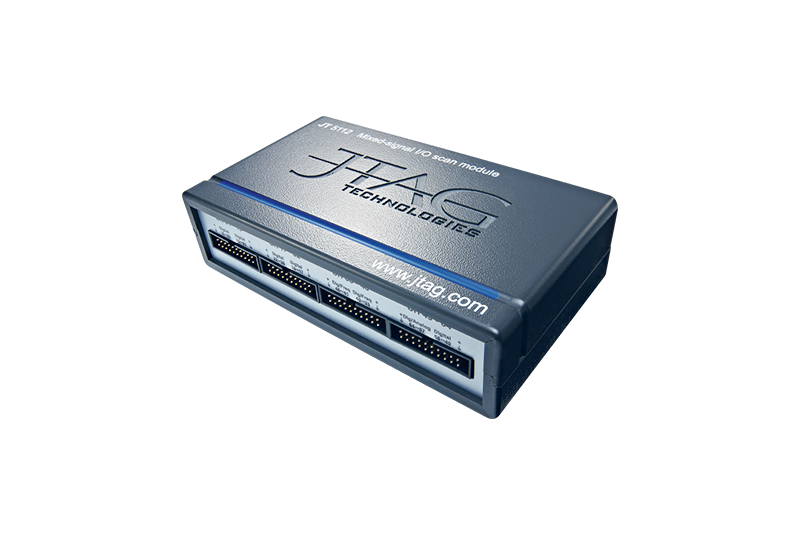

The JT 5112 MIOS JTAG/Boundary-scan mixed signal I/O with analog output module , simply add mixed-signal stimulus and measurement capabilities to your current JTAG test system.
Available in an impact-resistant enclosure or as a fixture-embedded version (/FXT) the JT 5112 works with all JT 37xx series of controllers. Measure and source analog values up to 30V on up to eight channels. Digital I/O on up to 64 channels. Also features frequency measurement capability and user programmable functions. Connections are via standard 0.1″ IDC plugs on the front of the unit. JTAG TAP and power connections at the rear.
JTAG analog output
JTAG / Boundary scan I/O
