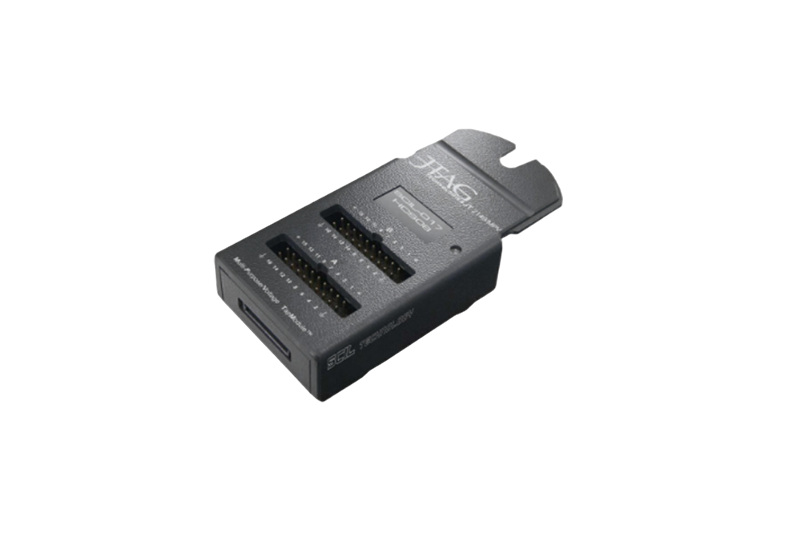

SCIL (Scan Configured Interface Logic) modules are a range of hardware functions usually pre-programmed into pods that take the place of a regular TAP pod within the JT 37×7 DataBlaster’s QuadPod system. Alternative ‘hosts’ for SCIL functions can also be the JT 2111/MPV (desktop DIOS) or the JT 5112 (MIOS). Currently available SCIL modules for enhancing test coverage are counter/timer and pattern generator/comparator units. Other SCIL modules are used in tandem with a SCIP (Serial Controlled In-system Programming) software options for in-system programming purposes. SCIP/SCIL combinations are used for programming Freescale parts via BDM, and Mono8 interfaces. SPI, I2C, SWD, and Microchip custom one-wire protocols are also supported.
Further SCIL module functions can be developed upon request, simply contact us or your local sales office.
